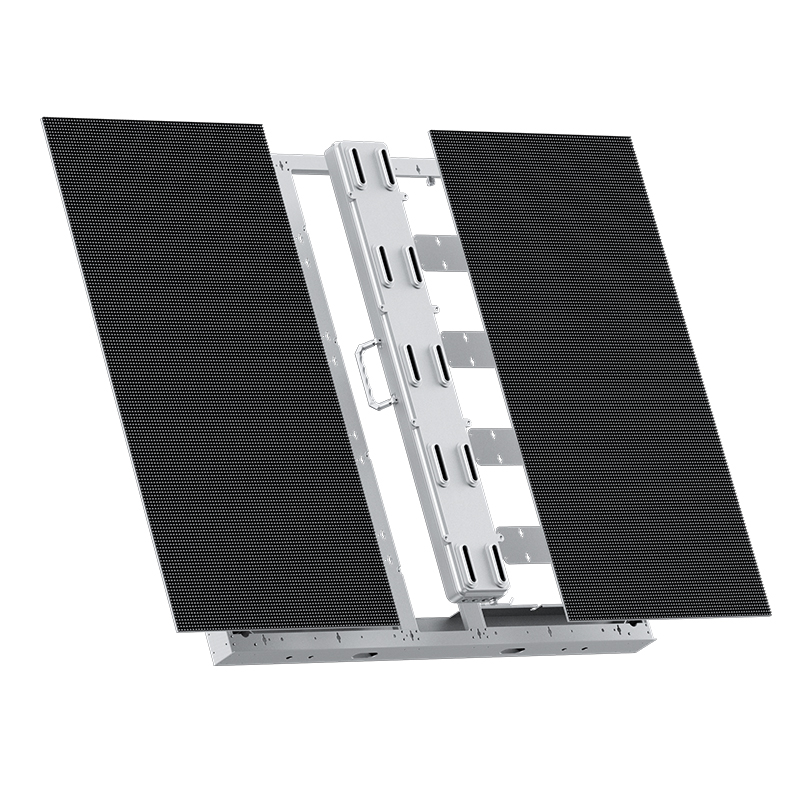

The XOBLED S6 is a high-brightness, waterproof outdoor LED display designed for premium advertising, signage, and commercial installations. With a 6.25mm pixel pitch and 4K resolution, it delivers crystal-clear visuals even in direct sunlight. Engineered for long-term reliability, the S6 features a fixed cabinet design, IP66 waterproof protection, and advanced content management capabilities, making it the ideal solution for outdoor advertising, airports, exhibition halls, and other demanding environments.
The XOBLED S6 is a high-brightness, waterproof outdoor LED display designed for premium advertising, signage, and commercial installations. With a 6.25mm pixel pitch and 4K resolution, it delivers crystal-clear visuals even in direct sunlight. Engineered for long-term reliability, the S6 features a fixed cabinet design, IP66 waterproof protection, and advanced content management capabilities, making it the ideal solution for outdoor advertising, airports, exhibition halls, and other demanding environments.
Ultra High Brightness: 6,500–10,000 nits, sunlight readable
4K Resolution: Sharp, vivid visuals with 6.25mm pixel pitch
Durable & Weatherproof: IP66, -20℃ to 60℃ operating range
Flexible Installation: Wall, floor, or custom mounting options
High Refresh Rate: 7680Hz for flicker-free, smooth motion
Advanced CMS: Cloud-based, multi-language, AI-driven content
Remote Management: Real-time monitoring, FOTA, alerts & API integration
| Attribute | Specification |
|---|---|
| Application | Outdoor |
| Type | LED |
| Model Number | S6 |
| Resolution | 3840 × 2160 (4K) |
| Pixel Pitch | 6.25 mm |
| Pixel Density | 256,000 pixels/m² |
| Brightness | 6500–10000 nits |
| Color Gamut | ≥16,384 levels |
| Color Depth | 16-bit |
| Gray Scale per Color | ≥16,384 levels |
| Refresh Rate | 7680 Hz |
| Viewing Angle | 160° |
| Color Temperature | -20–50 (unit unspecified, likely °C equivalent or adjust range) |
| Operating Temperature | -20℃ ~ 60℃ |
| Mounting Options | Floor Stand, Custom Mount, Wall Mount |
| Power Supply | 100–240V AC |
| Power Consumption | 180 W |
| Warranty | 1 Year |
| Media Available | Other |
| Sunlight Readable | Yes |
| Waterproof Rating | IP66 |
| Place of Origin | Guangdong, China |
| Usage Environment | Advertising, Airport, Display of Dishes, Education, Elevator, Exhibition Hall, Medical Treatment |
| Signal Input Type | CAT5 cable: <100 m; Single mode fiber: <10 km |
| Cabinet Installation Type | Fixed |
| Content Management System | Multi-Language Support, Mobile CMS, Content Scheduling, Cloud-Based CMS, Built-In CMS, Analytics Integration, AI-Driven CMS |
| Remote Device Management | Real-Time Status Monitoring, Firmware Over-The-Air (FOTA), Cloud-Based RDM Platform, API Integration, Alarm & Notifications |
| LED Screen Size (L × W) | 256,000 mm² (unspecified exact dimensions) |
